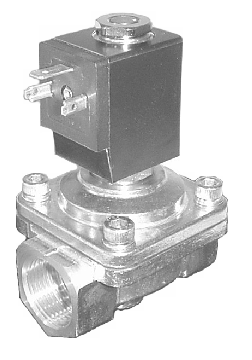

200 SERIES

2/2 NC DIRECT ACTING

SOLENOID VALVE 3/4" NPT





NOTE: SHOWN WITH 2 DIN CONNECTOR

(CONNECTOR MUST BE ORDERED SEPARATELY)



- COIL CAN BE ROTATED 360 DEGREES

- COIL CAN BE CHANGED UNDER PRESSURE

- FAST RESPONSE - DIRECT ACTING - SPRING RETURN

- PERFECT FOR LOW PRESSURE APPLICATIONS

- INSTALLATION: SLANT PIPE OR WATER LEVEL

- DIE CAST BRASS BODY

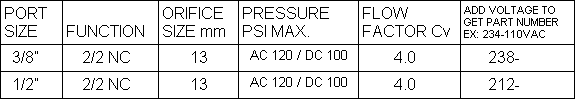

Note: Same Dimensions for 3/8" & 1/2"
